Modular radial and focused shock wave therapy (ESWT) with ultrasound imaging for efficient pain therapy in orthopedics
The DUOLITH® SD1 »ultra« shock wave system represents a clear modular concept that meets the growing demands of a medical practice regarding therapy and diagnosis. This is not only beneficial to newcomers to the field of extracorporeal shock wave treatment but also to experienced users.
Product Overview
Combined Shock Wave Therapy
The DUOLITH® SD1 »ultra« combines radial and focused shock wave therapies, complementary vibration and vacuum therapies as well as the integrated ultrasound imaging in one system. The imaging system and the patient-specific shock wave treatment can be performed via one single control unit.
MODULAR THERAPIES
A solution for focused and radial shock wave therapy

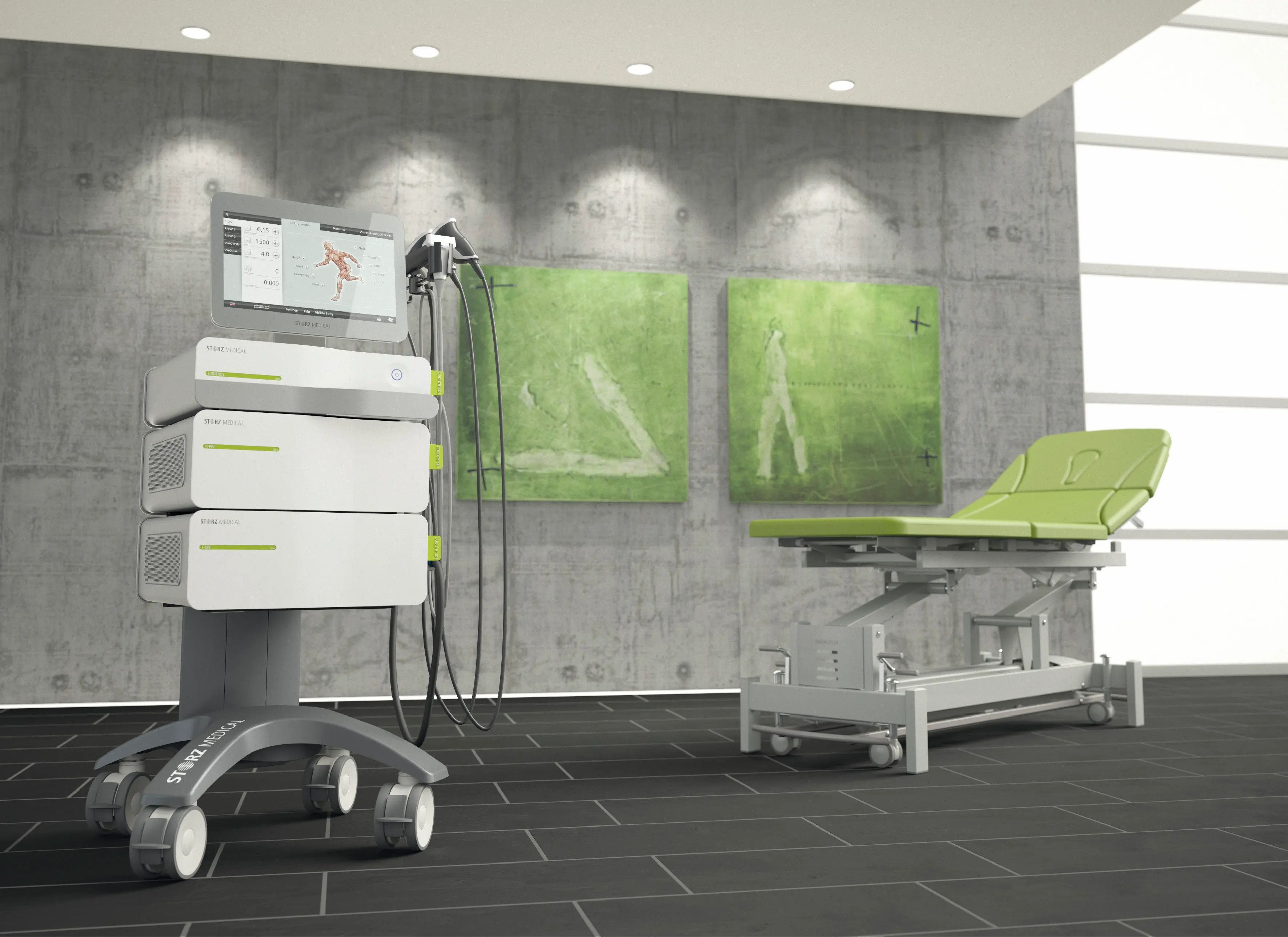

The DUOLITH® SD1 »ultra« can be combined or extended individually and operated centrally via the 15.6" touch screen. All modular elements of the entire system are interconnected in the equipment trolley.
Highlights
Engineered for Excellence
Combined radial and focused shock wave therapy
Therapy, diagnosis, information and user guidance combined in one system (»Connected Technologies«)
Individual modularity
Integrated ultrasound imaging with colour Doppler (optional)
product details

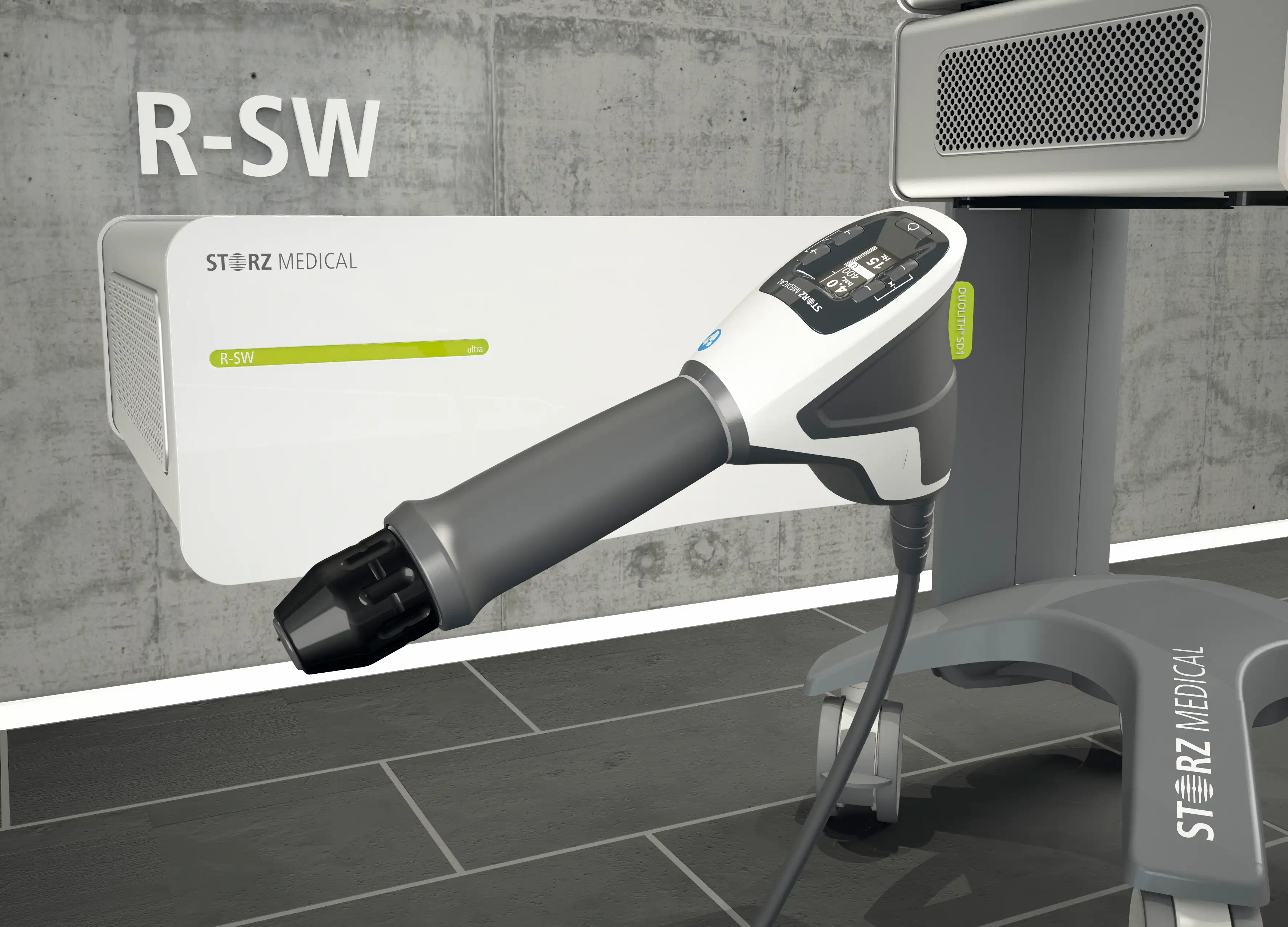

DUOLITH® SD1 »ultra« – Intuitive Treatment
• All control elements integrated into the handpiece
• Extended energy range: 0.3 – 5 bareff
• 4 connections: 2 x R-SW, 1 x V-ACTOR®, 1 x VACU-ACTOR®
• Vibration therapy with V-ACTOR® »HF« handpiece (optional)
• VACU-ACTOR® vacuum therapy (optional)
.webp)
• Effective treatment with minimal hand fatigue directly at the patient
• Reduced revision time and costs thanks to easy change of coil
• All control elements integrated into the handpiece
• Focal zone depth (with/without stand-off): 0 – 65 mm
• Penetration depth: up to 125 mm
• Energy transfer: 0.01 – 0.55 mJ/mm2
KEY FEATURES

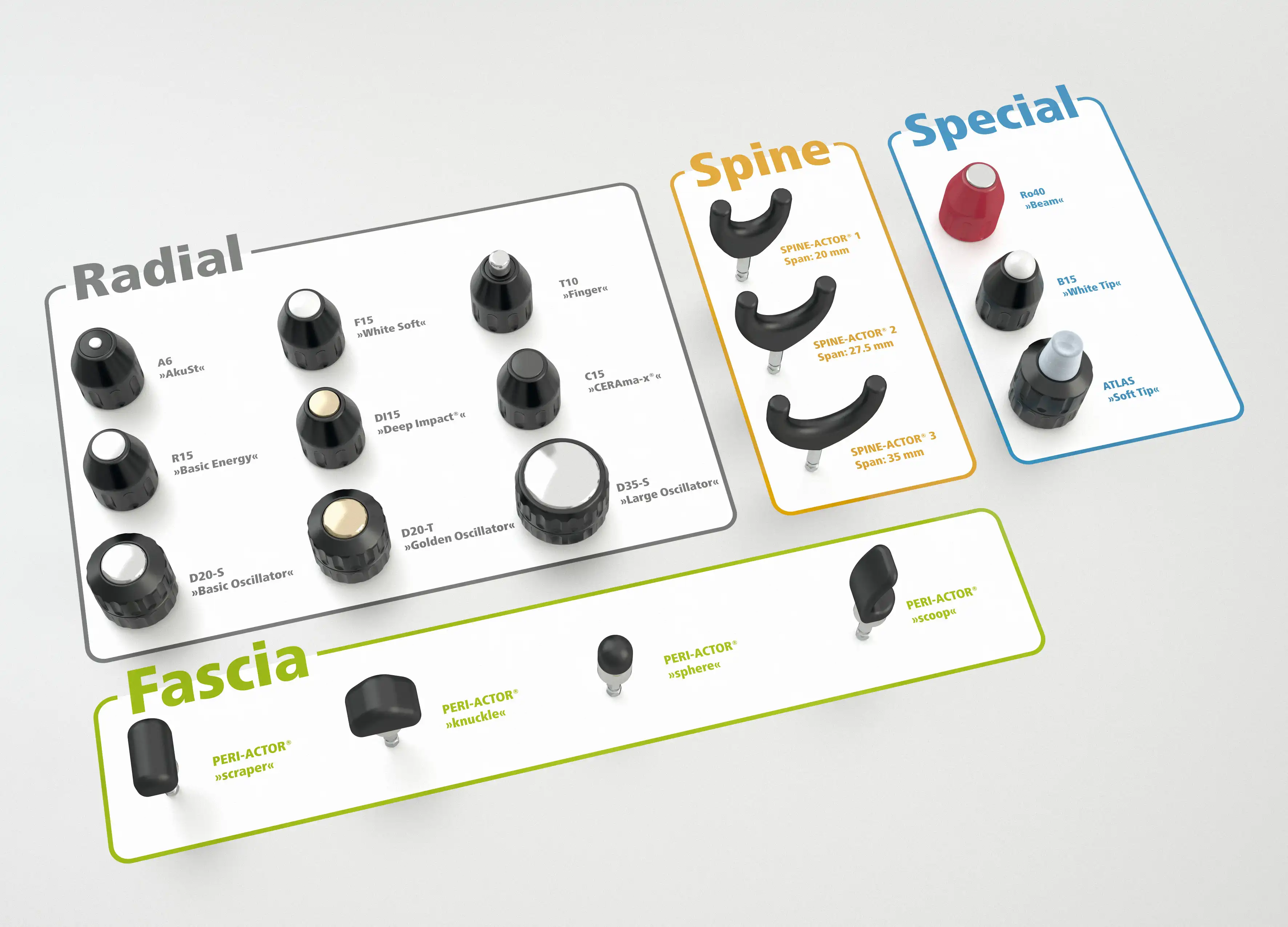

FALCON® Handpiece Transmitters
.webp)
Radial transmitters
The radial transmitters have been used successfully for years and are suited for the treatment of all typical shock wave indications such as tendinopathies, heel and shoulder pain, and myofascial trigger points.
Fascia PERI-ACTOR® transmitters
The four PERI-ACTOR® transmitters developed in collaboration with Drs Swart and Di Maio have been specially created for the treatment of fascia. The »scraper«, »knuckle«, »sphere« and »scoop« versions allow adapting the treatment to the individual fascia structure. Thanks to the special shape of the transmitters, it is possible to treat fasciae trigger points for optimal pain relief.
SPINE-ACTOR® transmitters
The three SPINE-ACTOR® transmitters come in different sizes and make a special treatment in the paravertebral region possible. Owing to the forked »Double Tip« shape of the transmitters, the paravertebral muscles of the entire spine can be optimally reached.
Learn MORE
Frequently asked questions
Discover more information by checking out some of our frequently asked questions!
Yes, all system modules can be operated via the generously dimensioned touch screen on the multifunctional control unit. Functions and indications can be selected and accepted by tapping on the screen. In addition to the control unit the system offers a patient management system as well as treatment parameters recommended by experienced users and supported by videos and images.
The radial transmitters have been used successfully for years and are suited for the treatment of all typical shock wave indications such as tendinopathies, heel and shoulder pain, and myofascial trigger points
The DUOLITH® SD1 »ultra« is modular radial and focused shock wave therapy (ESWT), therefore, both treatments are available in one modular unit.
