Focused shock wave therapy (ESWT) for non-invasive treatment of orthopedic disorders
High-quality workmanship and optimal ergonomics mark the design of the new focused shock wave generation with the SEPIA® handpiece. The special flexibility of the handpiece cable supports effortless and, thus, easier treatment always directly at the patient – an important factor in the day-to-day work.
.webp)
Product Overview
Next-Generation Shock Wave Therapy

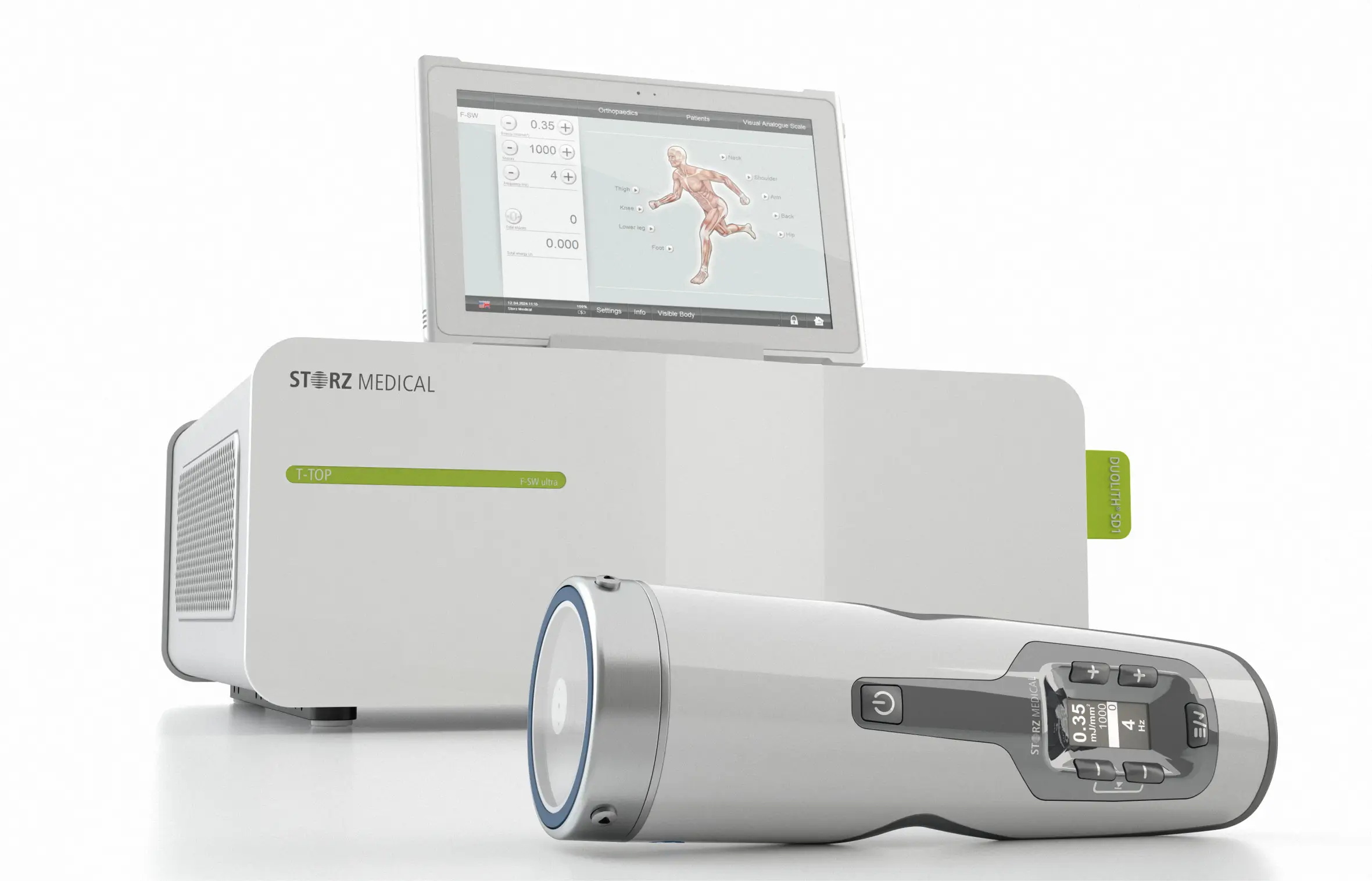

All the important control elements have been integrated into the handpiece. Frequency and energy level can be adjusted directly at the handpiece.
The easy replacement of the cylindrical coil is another advantage for the user as it saves revision time and costs.

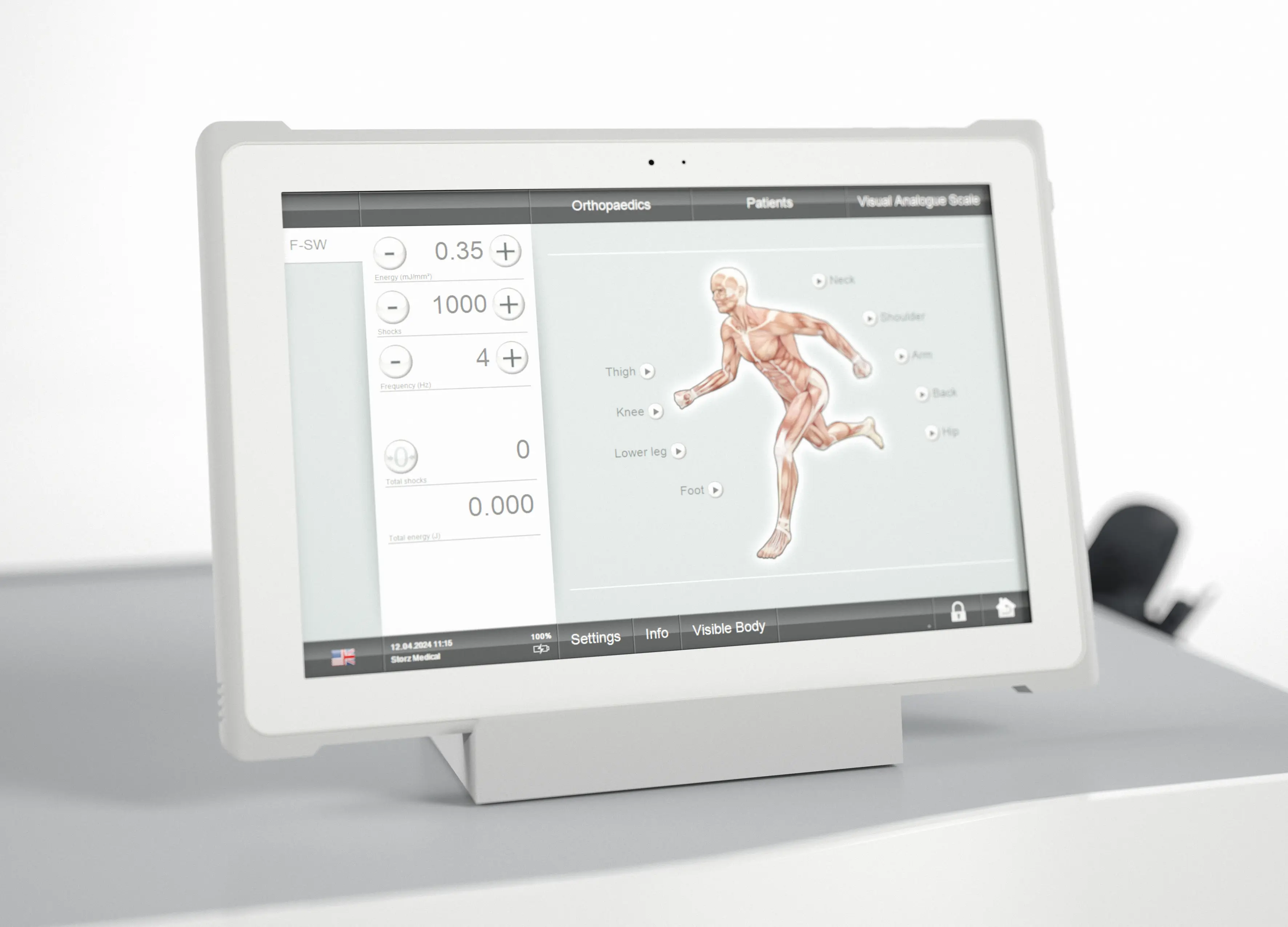

The optional 10" touch screen expands with valuable features: Functions and indications can be selected and accepted by tapping on the screen. The software includes a retrievable patient management system as well as treatment parameters recommended by experienced users and supported by videos and images.
WHAT IS ESWT?
Extracorporeal Shock Wave Therapy (ESWT) – An innovative method for pain treatment
Extracorporeal Shock Wave Therapy (ESWT for short) is a non-invasive option for the treatment of various pains and diseases of the musculoskeletal system. ESWT has been used successfully in orthopedic pain therapy since the beginning of the 1990s. The shock waves used are short sound pulses that can penetrate water and soft tissue. The shock waves are generated outside the body (»extracorporeally«) in the handpiece of the device and transmitted into the patient's body by means of ultrasound gel, where they have a targeted effect on the painful areas.
.webp)
Shock waves defined: patient information
Shock waves are high-energy, audible sound waves. They are characterised by a rapid increase in pressure and a short pulse length. They occur in our everyday lives, for example, when aircraft break the sound barrier.
The treatment: How does shock wave treatment proceed?
The therapist first conducts a detailed medical history interview with the patient to learn about the history of the symptoms and to gain important additional information by asking specific questions. In addition, the pain zone is localised by palpation.
Highlights
Engineered for Excellence
Effective and effortless treatment directly at the patient
All control elements integrated into the handpiece
Reduced revision costs thanks to easy change of coil
Large 10" touch screen
product details
Precise Innovation

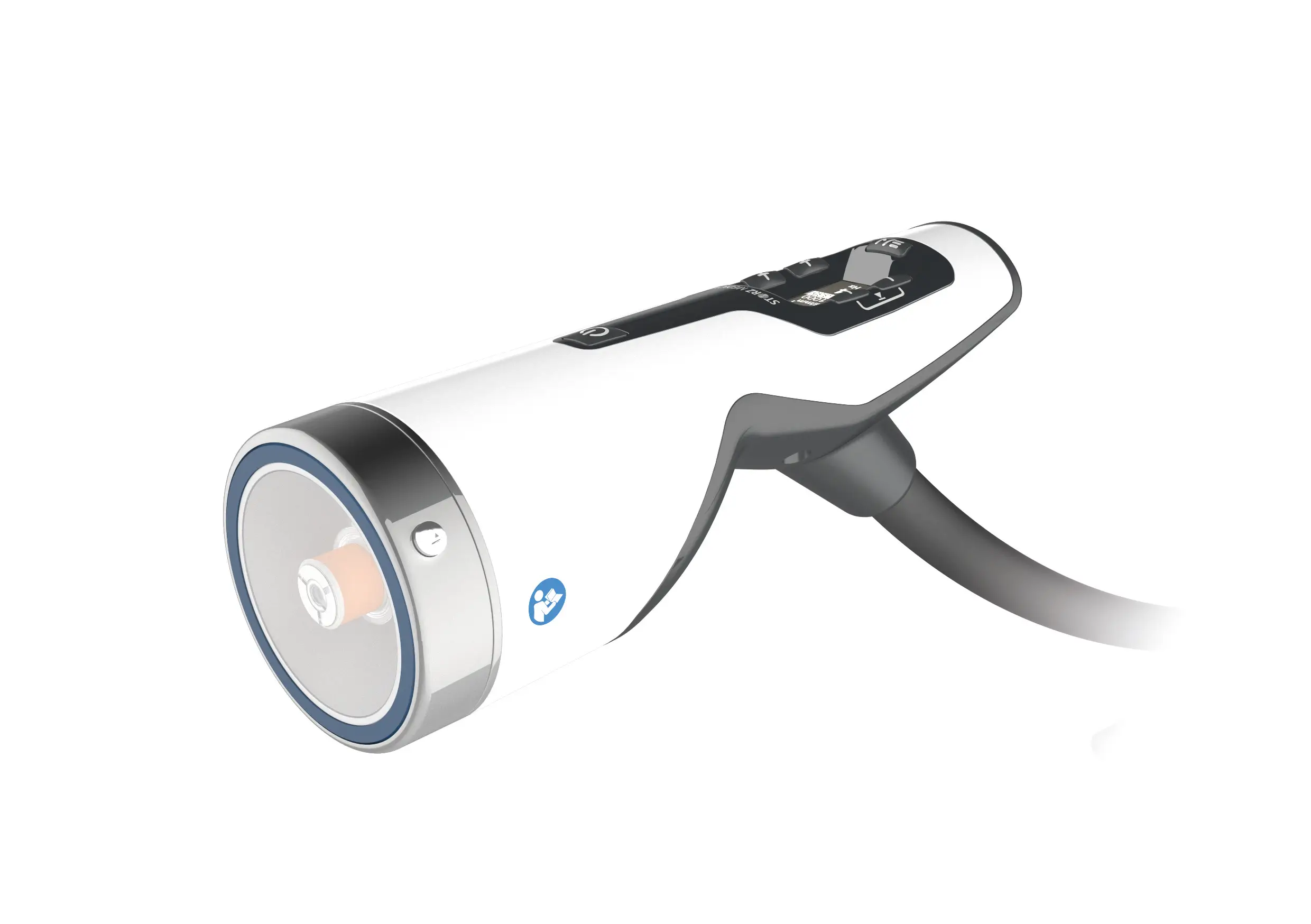

Focused SEPIA® handpiece especially for the treatment of chronic proximal plantar fasciitis
Focal zone depth depending on stand-off: 0 – 65 mm
Penetration depth: up to 125 mm
Constant energy transfer: 0.01 – 0.55 mJ/mm
.webp)
C-ACTOR® SEPIA® handpiece for the treatment of diabetic foot ulcers
Focal zone depth depending on stand-off: 0 – 40 mm
Penetration depth: up to 65 mm
Constant energy transfer: 0.03 – 1.24 mJ/mm2
OPTIONAL FEATURES
Touch screen – The ideal extension for the DUOLITH® SD1 T-TOP »ultra«
Treatment parameters with application videos
The optional 10" touch screen connects to the shock wave device via a USB cable and extends it with valuable features: Besides the additional device control, it offers patient management as well as treatment parameters recommended by experienced users, which are supported with videos and images.

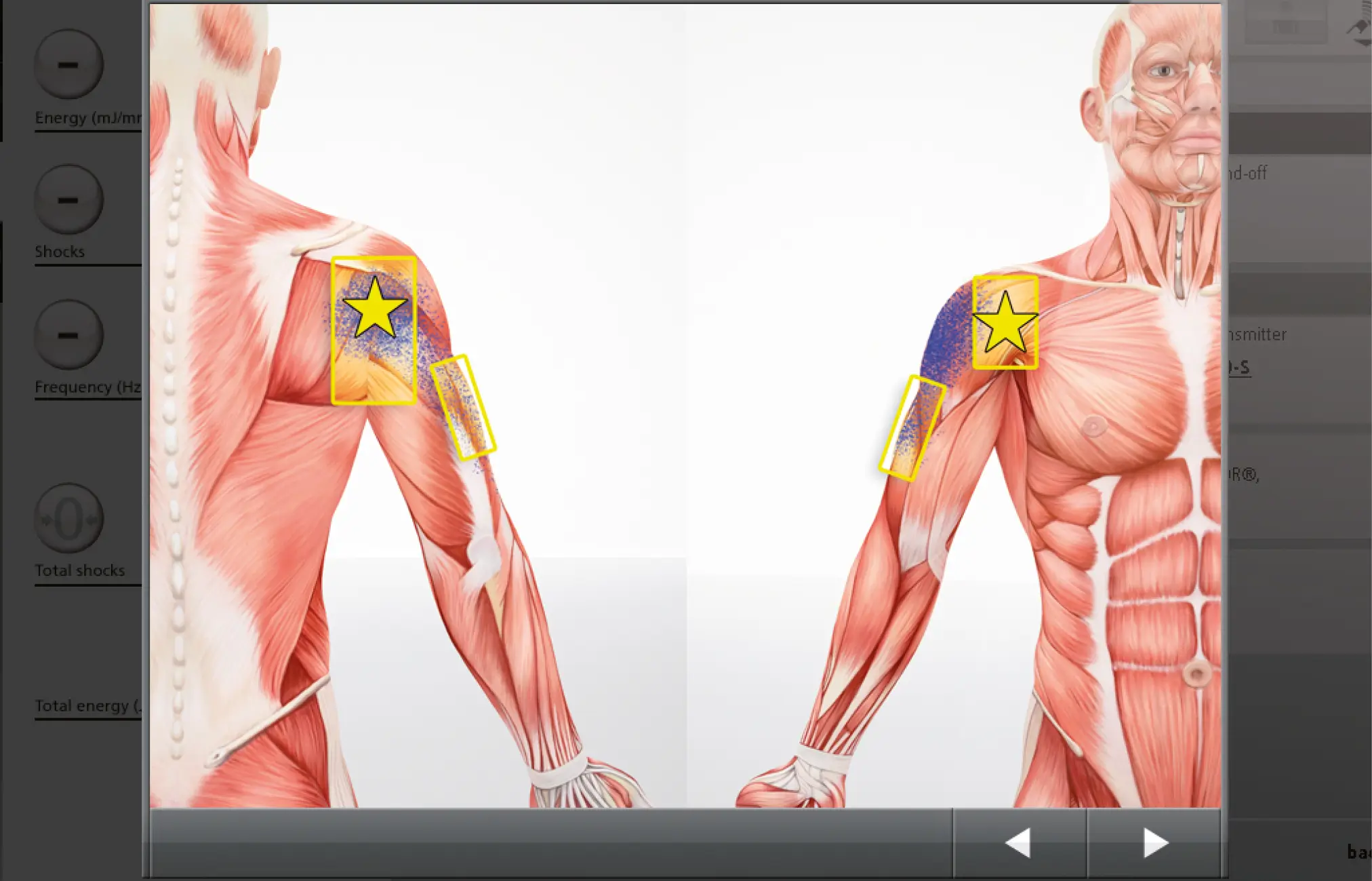

Overview of pain zones
Rotating and moving 3D models allow muscle movements, pathologies and diseases to be visualised. This makes a new type of interaction between user and patient possible.
Visible Body® digital anatomy atlas
The integrated Visible Body® software allows not only detailed visualization Treatment parameters with application videos of muscular structures but also a deep »dive« into the human body at different levels. Detailed definitions and information on anatomies offer support for users.
Learn MORE
Frequently asked questions
Discover more information by checking out some of our frequently asked questions!
Yes, the stand-offs supplied can be used to adjust the penetration depth individually to the indication.
Plantar fasciitis and diabetic foot ulcers
Focused shock wave therapy
