Radial Shock Wave Therapy – mobile and versatile
The MASTERPULS® R-SW line seamlessly continues the success of the MASTERPULS® »ultra« models and offers maximum performance combined with intuitive operation. Whether for classic indications such as epicondylitis, heel spurs or myofascial trigger points – the FALCON® handpiece provides a precise, ergonomic and powerful tool.
For fascia therapy and muscle stimulation, the MASTERPULS® R-SW100 employs V-ACTOR® vibration therapy »Deep Vibration«, offering a unique deep effect.
Product Overview
The new MASTERPULS® R-SW generation
Efficiency through flexibility

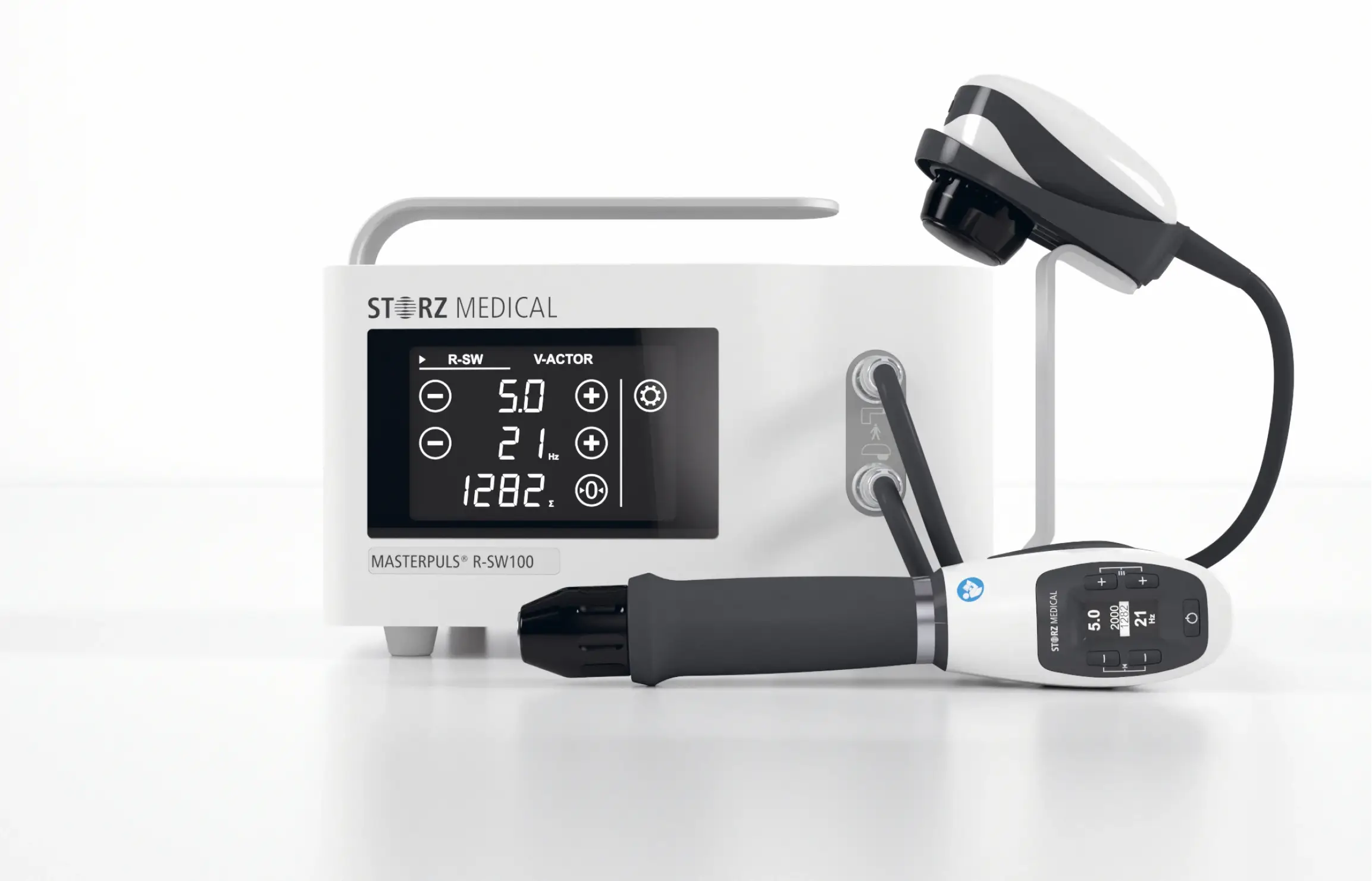

MASTERPULS® R-SW100 with »Deep Vibration« The powerful model – expanding functionality twofold:
Two connections for the radial FALCON® handpiece and the »Deep Vibration« V-ACTOR® handpiece enable combined treatment with one device.
sETTING tHE sTANDARD
The new best in class MASTERPULS® R-SW100

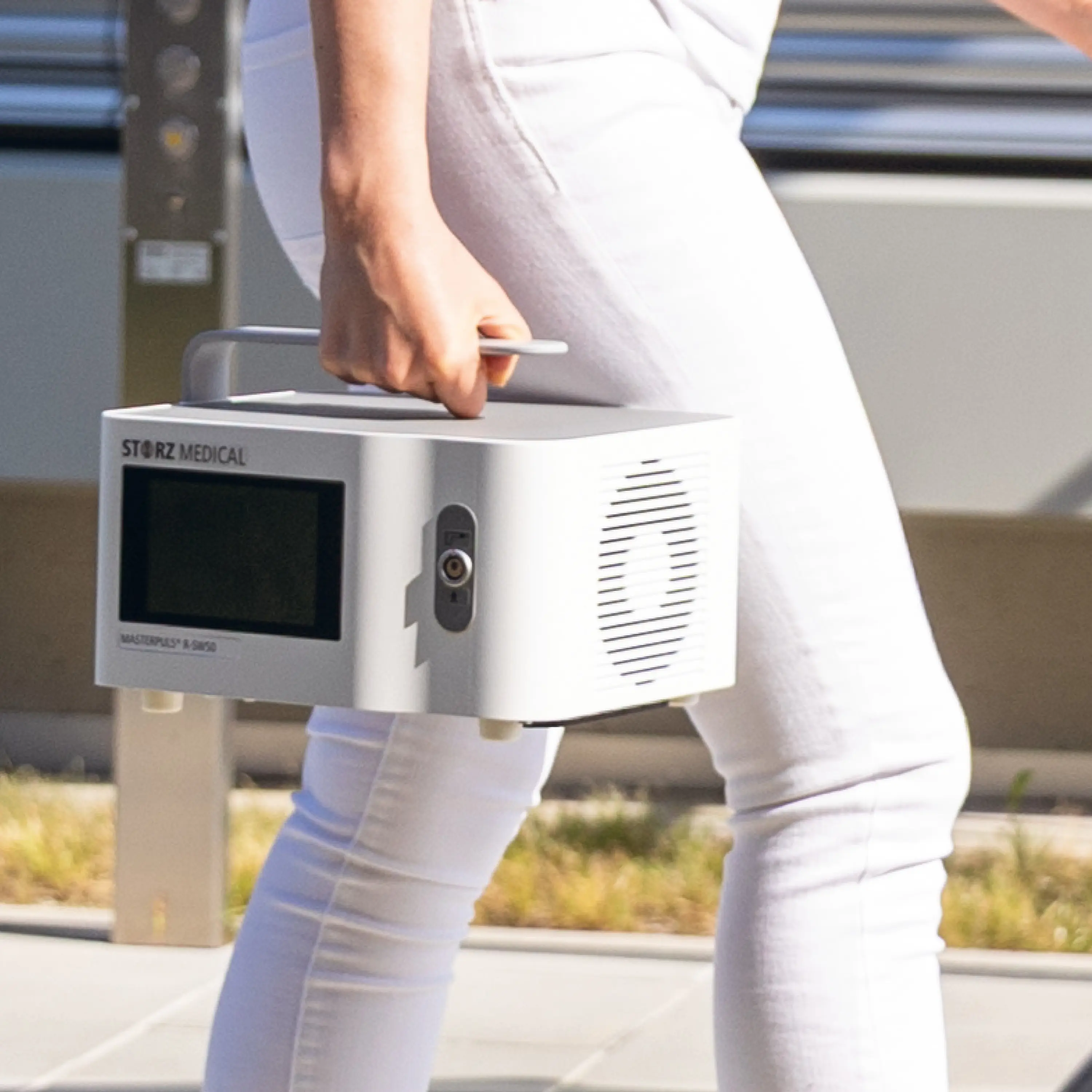

Thanks to the low weight and compact design, the MASTERPULS R-SW100 is an ideal companion – both in practices and on the go for home visits or sporting events. Integrated compressor technology, minimal maintenance and simple operation make this new generation of radial devices the modern solution for the highest therapeutic demands.
Shock waves defined: Patient information
Shock waves are high-energy, audible sound waves. They are characterized by a rapid increase in pressure and a short pulse length. They occur in our everyday lives, for example, when aircraft break the sound barrier.
The treatment: How does shock wave treatment proceed?
The therapist first conducts a detailed medical history interview with the patient to learn about the history of the symptoms and to gain important additional information by asking specific questions. In addition, the pain zone is localised by palpation.
Highlights
Efficiency in its most Compact Form
Intensity: 0.3–5.0 bareff
Frequency: 1–21 Hz
»Deep Vibration« V-ACTOR®: 1–50 Hz

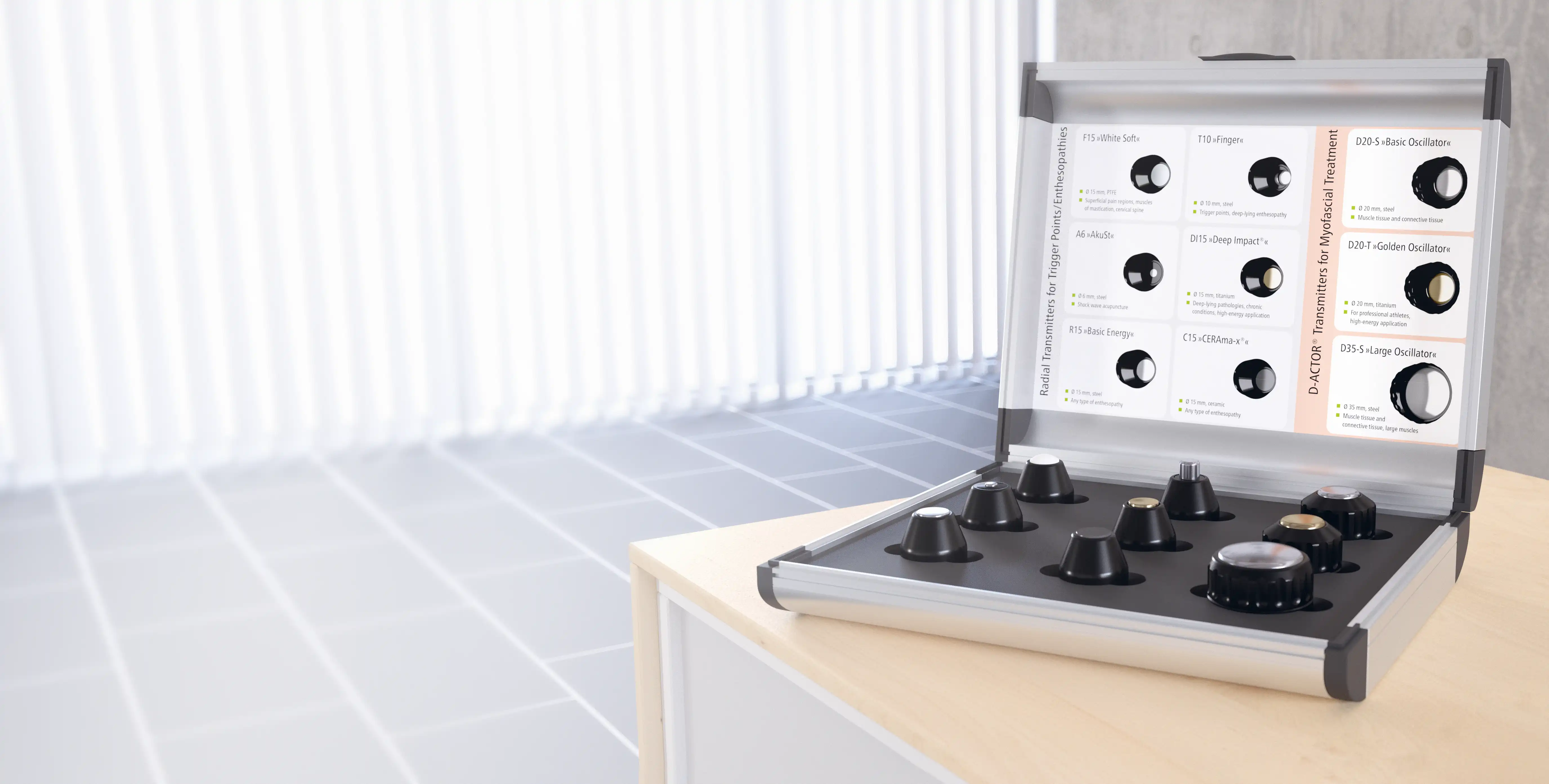

Radial transmitters included: R15, DI15, D20-S
product details
Proven technology in a new design
Advantages at a glance

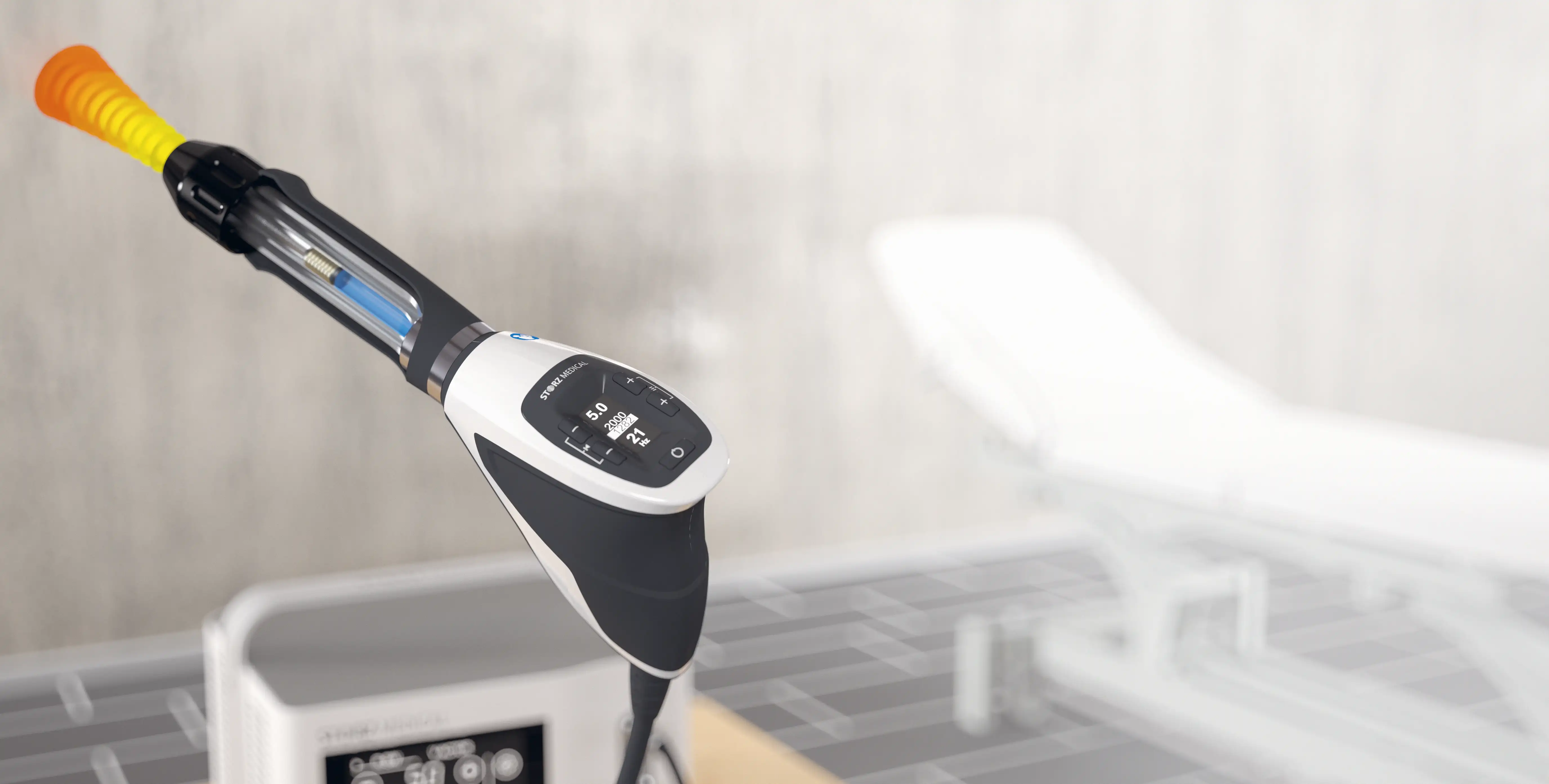

• »Active-tip-control« display for control directly from the handpiece
• Intensity can be finely adjusted
• Integrated operation: Pulse counter, frequency control and intensity regulation
• Ergonomic handpiece design with non-slip, elastic handle and vibration absorption
• Compatible with all radial transmitters from STORZ MEDICAL
• Easy to maintain and reliable

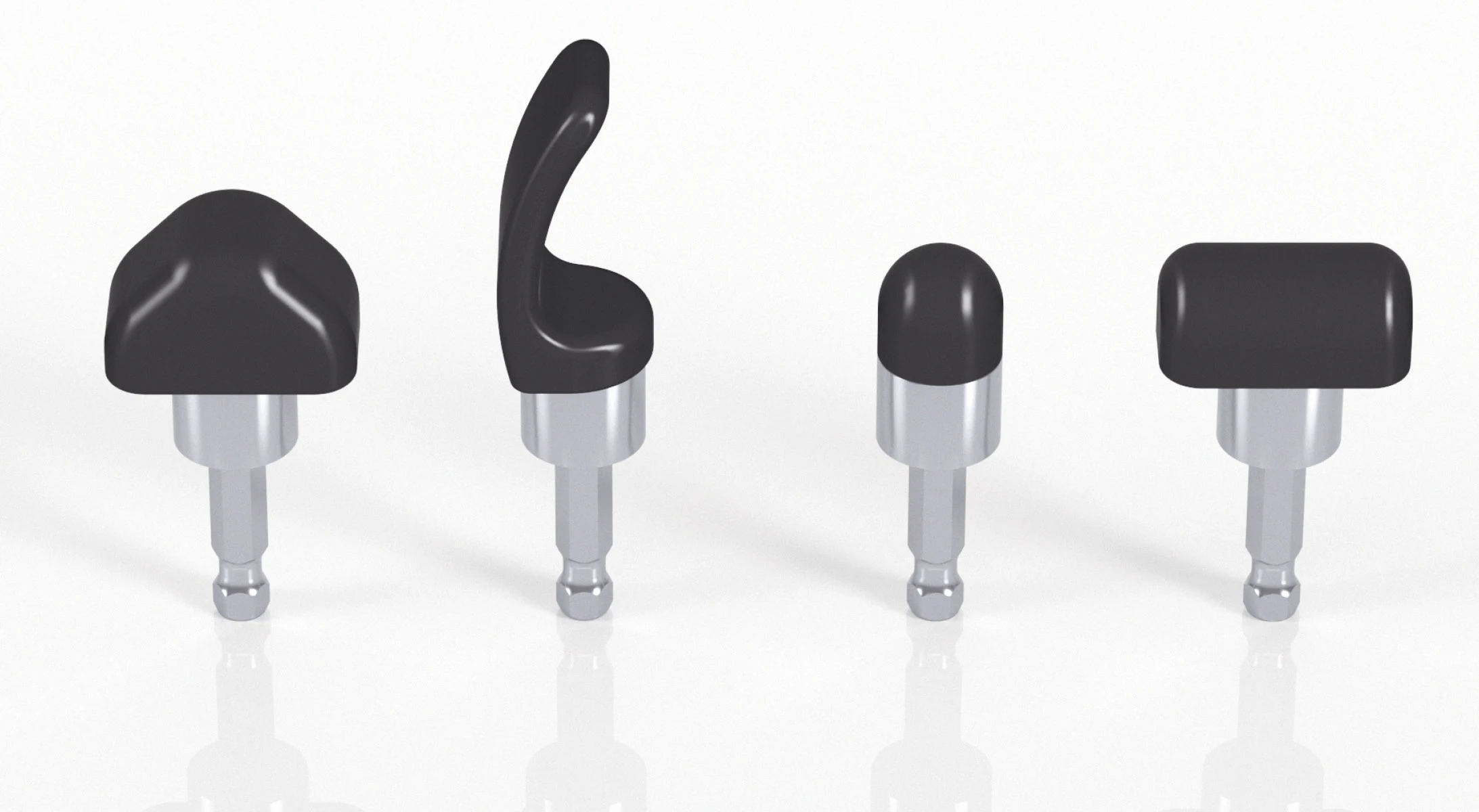

• Radial transmitters for all standard indications

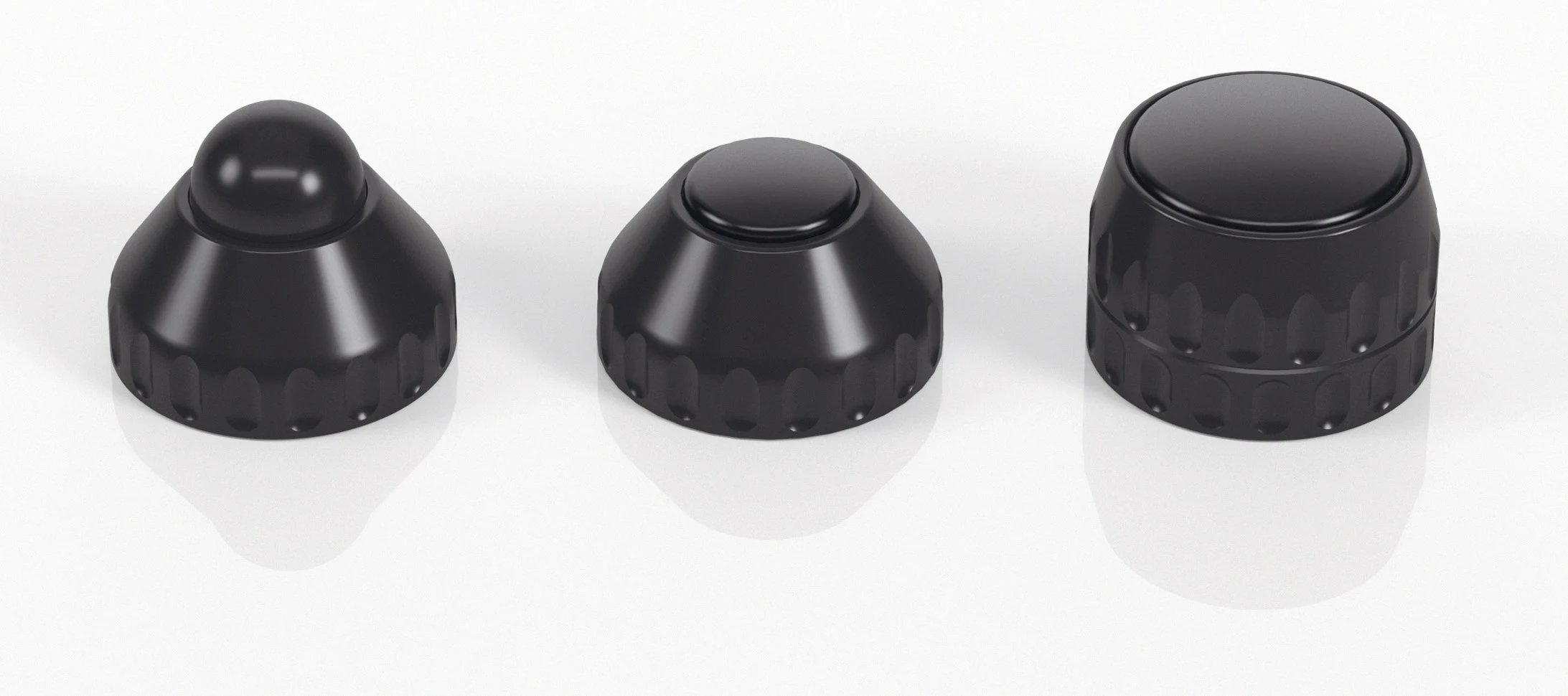

• PERI-ACTOR® transmitters for fascia therapy

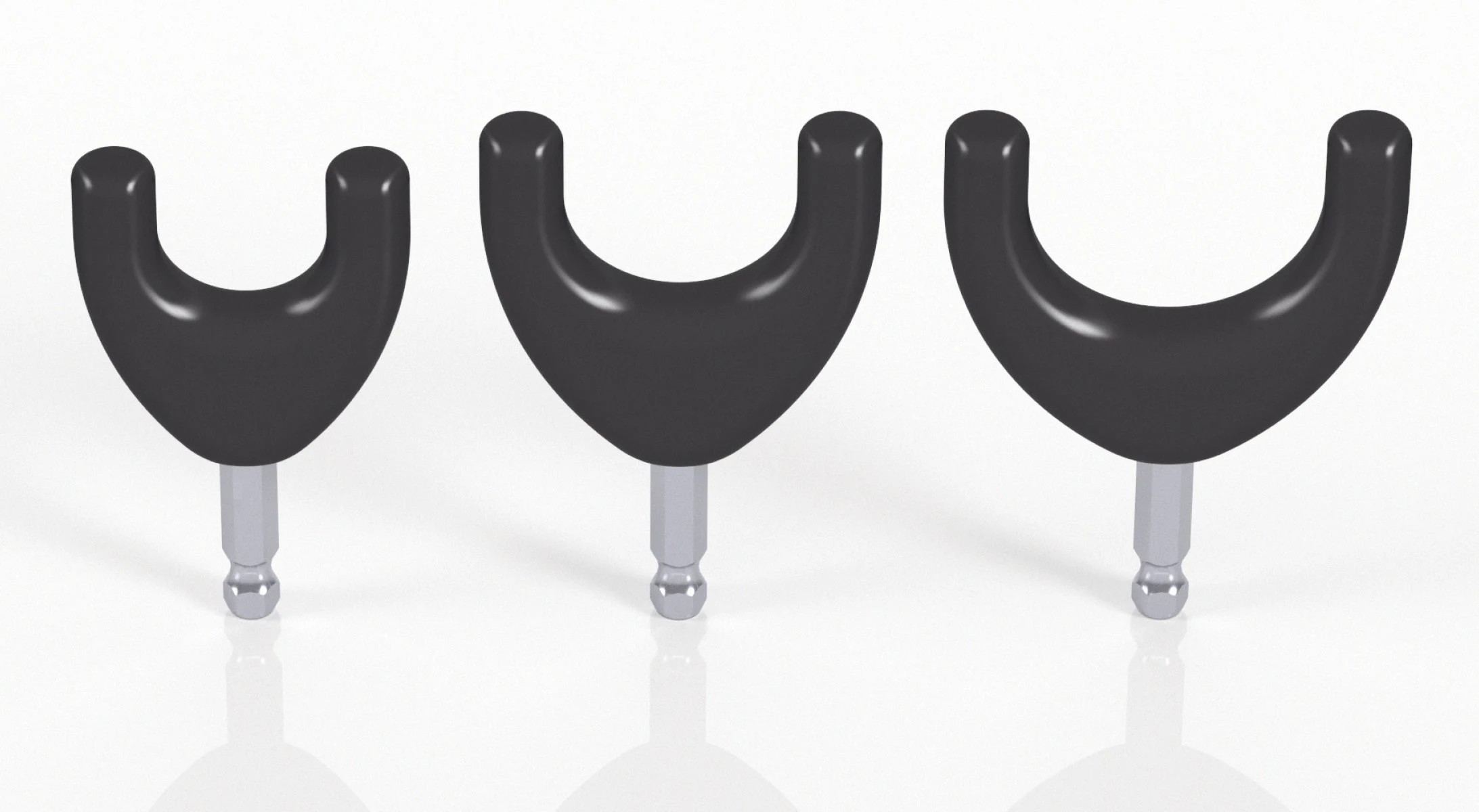

• SPINE-ACTOR® transmitters for the spinal muscles
Radial shock waves simplified
The physical principle behind this form of therapy
Basic physical principle
The operating principle of radial shock wave devices, such as the MASTERPULS® devices from STORZ MEDICAL, is based on a projectile accelerated by compressed air striking a transmitter. The transmitter, which is attached to the handpiece, is brought into direct contact with the body surface above the painful area to be treated.
Movement of the transmitter
The impulse transmission triggers a movement of the transmitter, which is visible and clearly perceptible as a deflection of the transmitter. This macroscopic movement is also described as an acoustic pressure wave.
Transmitter Stimulation
The transmitter is stimulated to vibrate at its natural frequency, resulting in a high-frequency wave generated through coupling with ultrasound gel on its surface, which then propagates throughout the body.
Learn MORE
Frequently asked questions
Discover more information by checking out some of our frequently asked questions!
• Effective stimulation of deep tissue layers
• Quick change between radial shock wave and vibration therapy
• High patient satisfaction thanks to pleasant application and lasting effects
• 1–50 Hz high-frequency vibration therapy
• Intensity: 1–5 for superficial and deep tissue zones as well as for large muscle areas
Yes, it is a portable system with integrated touch screen.
With the »Active-tip-control« display, you benefit from precise control and a high level of operating comfort. All key parameters – such as intensity, frequency and number of pulses – can be set directly on the handpiece, allowing for uninterrupted work with maximum efficiency.
Let’s Start the Conversation
Interested in learning more?
Contact us today for more information about the MASTERPULS® R-SW100
