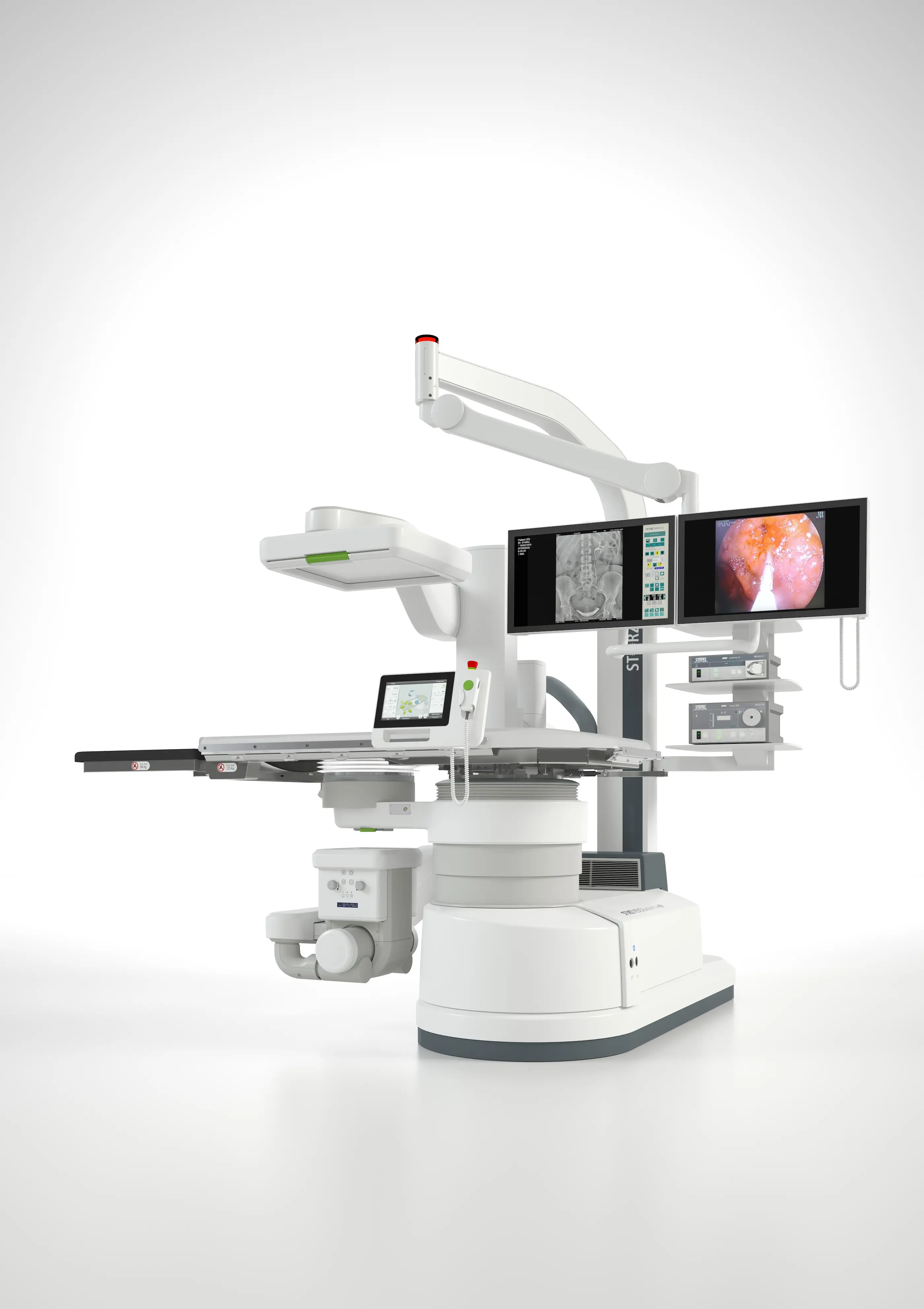

Multifunctional urological workstation with built-in shock wave system for endourological procedures and SWL
MODULITH® SLX-F2 »connect« is the perfect solution to all requirements a urological X-ray workstation and modern lithotripter are expected to meet. Multifunctionality, especially in terms of endourological procedures and diagnostic X-ray imaging, is the key feature of the system concept. The dynamic 43 cm x 43 cm X-ray flat-panel detector enables imaging of the entire genitourinary tract in a single image. The detector can be conveniently moved into over-table or under-table position.
.webp)
Product Overview
Individual and optimal therapy to serve people
Over the last few years, there have been significant developments in the field of urological diagnosis and therapy towards improved image quality, more flexible instruments and minimized invasiveness. Today, urologists have a wide range of different diagnostic and therapeutic procedures available that offer patients different treatment options.
Our engineers have implemented the concept of the MODULITH® SLX-F2 »connect« as a customized urological workstation that meets the demands of modern urology, offering a previously unknown wealth of functionality.
LEADERS IN UROLOGY CARE
The Solution for Demanding Requirements
Optimum ergonomics and the use of cutting edge technology ensure ideal working conditions. Physicians benefit from this just as much as their patients. The unique rotation facility of the stationary X-ray system creates sufficient working space above the patient, an unlimited field of view and free access to the table. This means that the MODULITH® SLX-F2 »connect« with its integrated lithotripter is the only system on the market that meets all the demands of a modern, urological X-ray workstation.
The MODULITH® SLX-F2 »connect« provides users with all the instruments they need to carry out any type of intervention in modern kidney stone therapy safely and conveniently.
Kidney stones in adults: patient information
National Kidney and Urologic Diseases Information Clearinghouse
Kidney stones: How to choose the right therapy?
The diagnosis of kidney stones inevitably raises the question as to which therapy will work best in your specific case. Today, there are various invasive and non-invasive procedures to choose from according to the type of stone and the specific stone location in the kidneys or ureter.
Highlights
Engineered for Excellence
KUB, Urography (IVP,IVU), Retrograde urography
Ureterorenoscopy (URS), Percutaneous nephrolithotomy (PCNL)
Transurethral resections (TURP, TURB), Cystoscopy
Placing and removing stents, Extracorporeal shock wave lithotripsy (ESWL)
product details
Advanced System Components
Thanks to the cylindrical design of the STORZ MEDICAL therapy coil, the stone can always be imaged in situ on the central axis of the therapy head - even during shock wave treatment - regardless of whether anteroposterior (AP) fluoroscopic projection or ultrasound localization is performed. In-line configuration ensures that obstacles in the shock wave path, such as ribs or the iliac wing, are instantly visible and can be bypassed during shock wave application.
.avif)
No two stones or anatomies are the same. Hence, different focal zones are required to accommodate different stone sizes and positions. The MODULITH® SLX-F2 »connect« offers a dual focus, allowing selection of shock wave parameters best suited to the patient's specific indication and a personalized treatment strategy. Focal size can be changed merely at the press of a button, even during treatment - a ground-breaking solution in the history of lithotripsy.

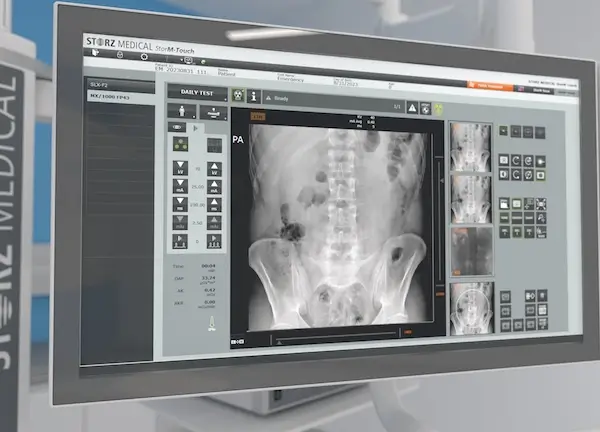

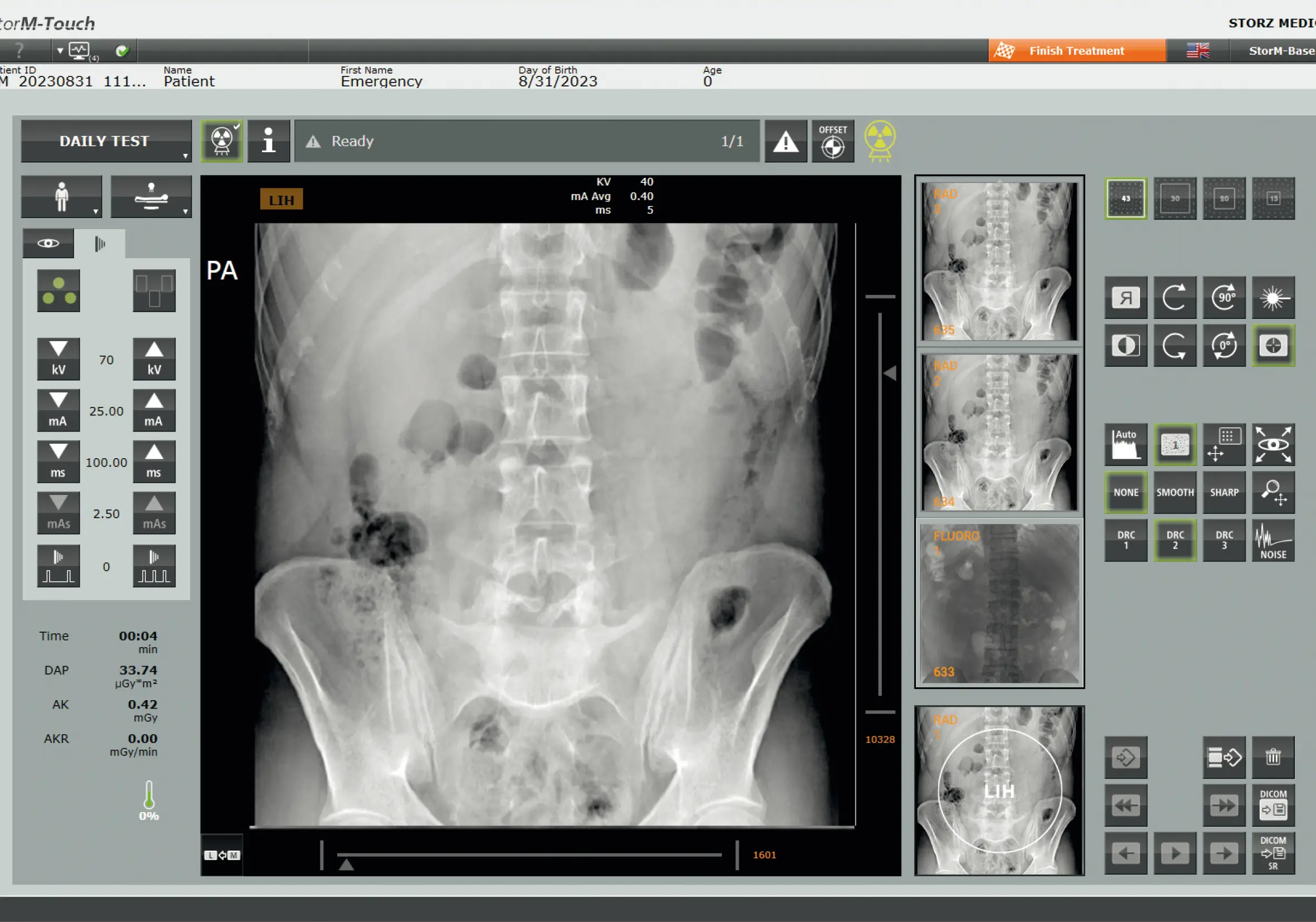

The StorM-Touch central control platform gives operators full control of all system functions. All integrated system components are controlled from a touch screen, either from a remote control panel behind leadglass windows or directly in the treatment room. The optional automated LithoPos® stone positioning system is a dose-reducing tool that is also integrated into the StorM-Touch platform. In addition, various integrated software applications enable rapid post-processing of X-ray images.

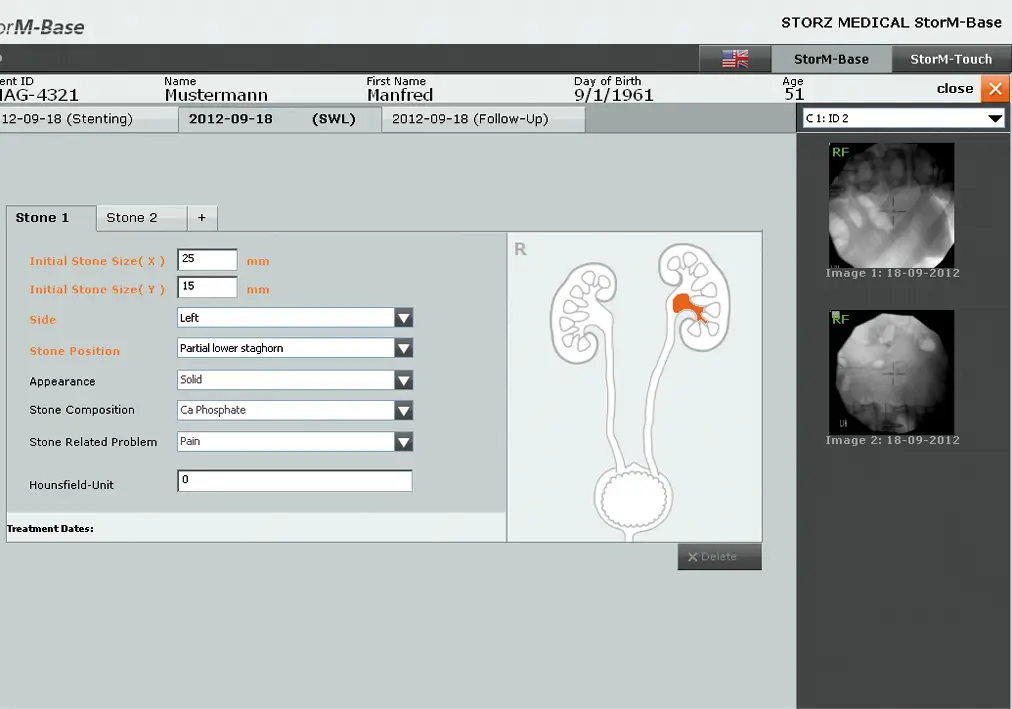

StorM-Base is a urological patient database and offers an ideal interface for retrieving and importing all patient and treatment data. The intuitive, modern design facilitates necessary documentation in daily clinical practice and makes time-consuming manual preparation of patient reports a thing of the past.
KEY FEATURES
How it works
.webp)

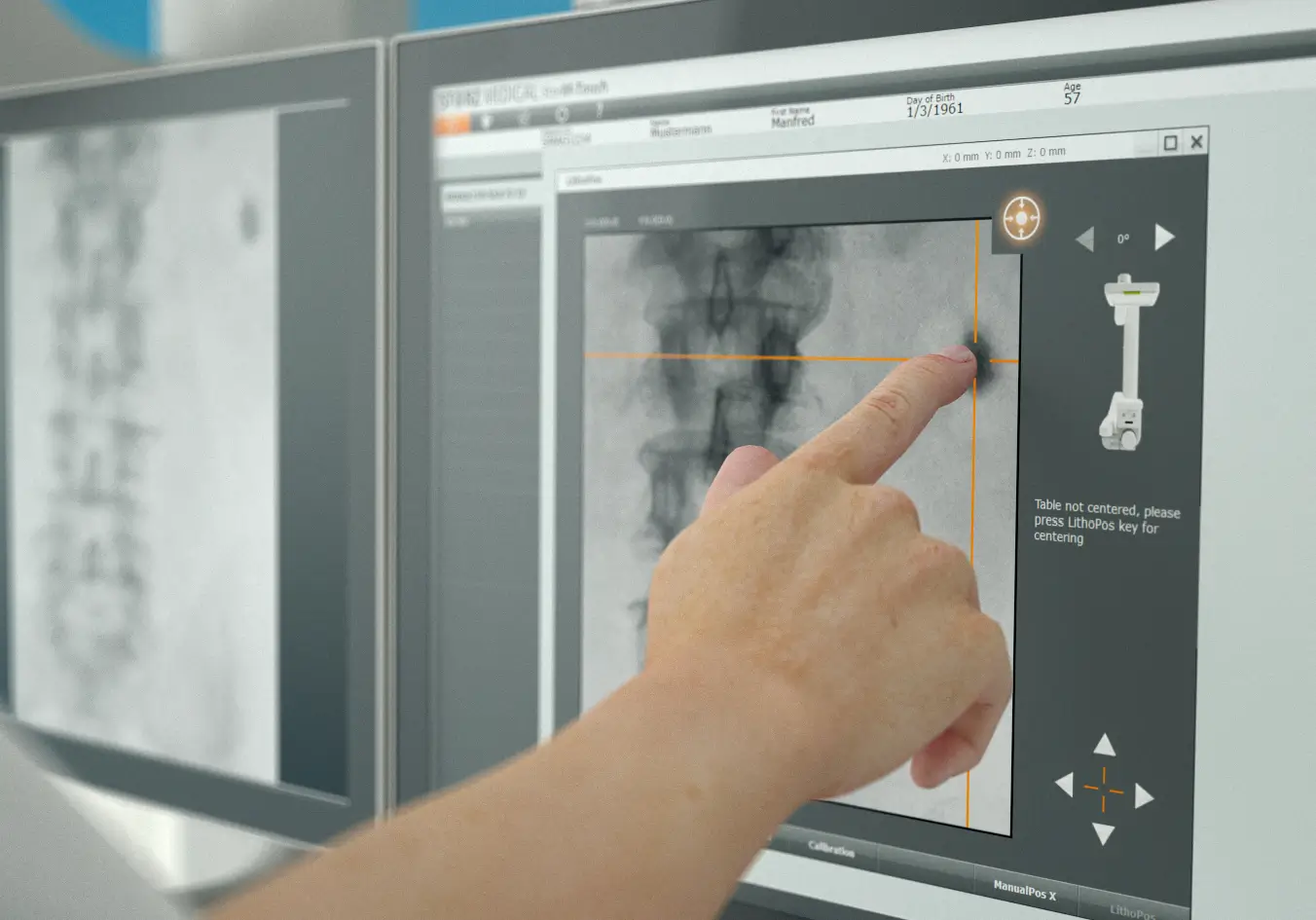

LithoPos®: rapid, fingertip control of stone positioning
Automatic stone positioning system (optional)
Straightforward treatment documentation
Intuitive operation via touch screen with graphical user interface, including an extensive patient database
.webp)

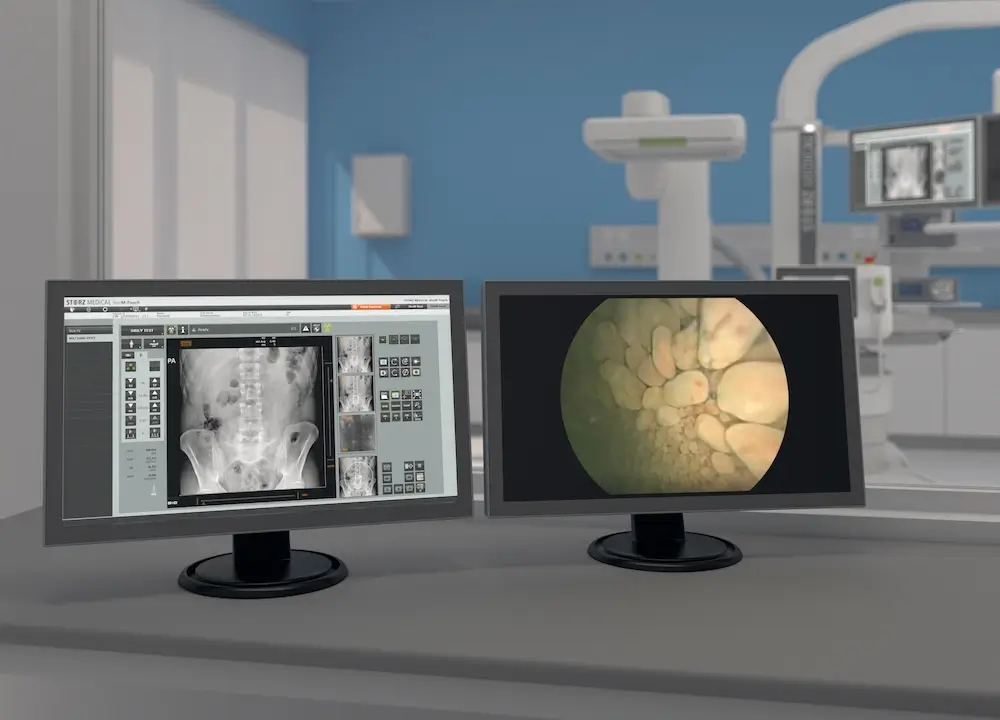

Management and post-processing of X-ray images
Control of X-ray system and lithotripter by means of a central user interface
LEADERS IN UROLOGY CARE
Integration & Connectivity
Using the DICOM and HL7 interface standards, the MODULITH® SLX-F2 »connect« integrates perfectly into the hospital’s existing internal network. This solution saves time and optimises workflow within both the urological department and the hospital as a whole.
Learn MORE
Frequently asked questions
Discover more information by checking out some of our frequently asked questions!
43 cm x 43 cm
No, it is a stationary urological x-ray workstation and lithotripter.
Electromagnetic
